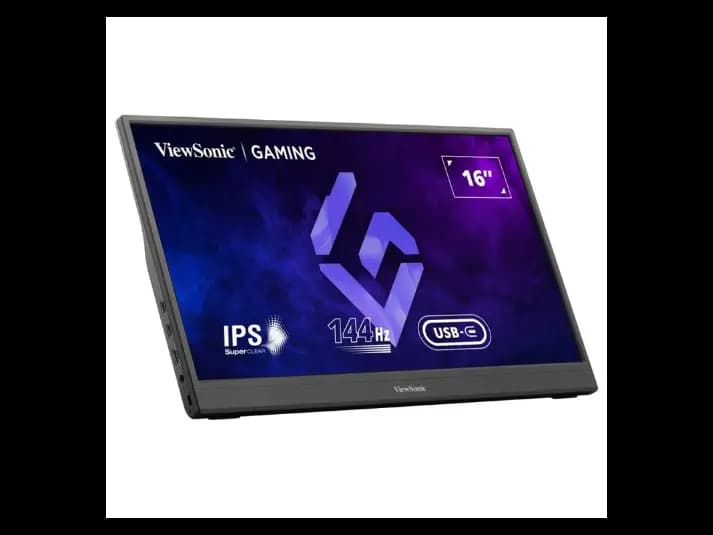

ViewSonic VX1654 16″ Portable Gaming Monitor

LESS WEIGHT, MORE GAMING

Experience the freedom of portability with the VX1654—weighing in at just 700g and razor-thin
at 9.85mm. This ultra-portable powerhouse is your go-anywhere, game-anytime sidekick.

FIND YOUR WINNING VIEW

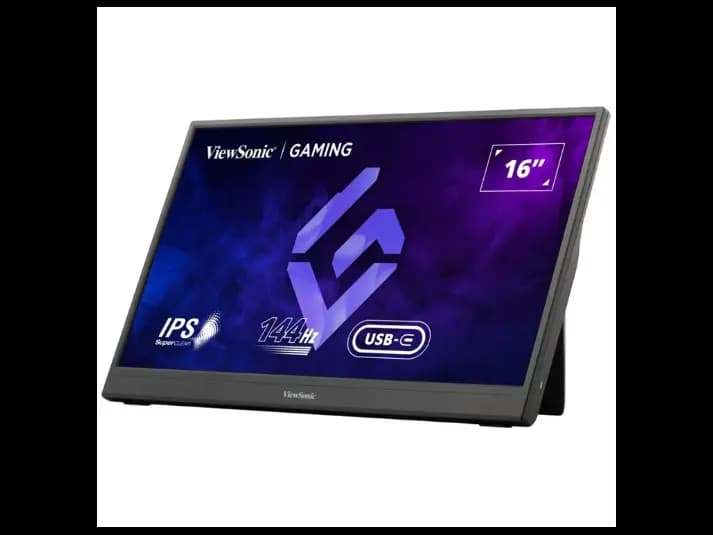

Lock in your perfect view with the flick of a wrist, thanks to the built-in foldable stand. With a durable
hinge that tilts up to 53 degrees, you’ve got the perfect angle covered for every epic play.



Display
Display Size (in.): 16
Viewable Area (in.): 15.6
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 800:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (GTG w/OD): 4.67ms
Viewing Angles: 170º horizontal, 170º vertical
Backlight Life (Hours): 15000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 144
Variable Refresh Rate Technology: FreeSync
Low Blue Light: Software solution
Color Gamut: NTSC: 45% size (Typ)
sRGB: 64% size (Typ)
Pixel Size: 0.179 mm (H) x 0.179 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)

Compatibility
PC Resolution (max): 1920×1080
Mac Resolution (max): 1920×1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac Resolution (min): 1920×1080

Connector
USB 3.2 Type C DisplayPort Alt mode only : 2 (60W power charger)
3.5mm Audio Out: 1
Power in: USB Type C (with video & data)

Audio
Internal Speakers: 0.8Watts x2

Power
Eco Mode (Conserve): 9.5W
Eco Mode (optimized): 10.4W
Consumption (typical): 11.3W
Consumption (max): 11.6W
Voltage: DC 5V/9V/12V/15V/20V
Stand-by: 0.5W
Power Supply: External (Optional)

Additional Hardware
Kensington Lock Slot: 1

Controls
Physical Controls: Up, Right, Down, Left, Power
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

Input Signal
Frequency Horizontal: mini HDMI (v2.1): 24 ~ 165KHz, Type C: 165 ~ 165KHz
Frequency Vertical: mini HDMI (v2.1): 48 ~ 144Hz, Type C: 48 ~ 144Hz

Video Input
Digital Sync: TMDS – mini HDMI (v2.1), Micro-Packet – Type C

Ergonomics
Tilt (Forward/Back): 30º / 53º

Weight (imperial)
Net (lbs): 1.5
Net Without Stand (lbs): 1.5
Gross (lbs): 3.5
