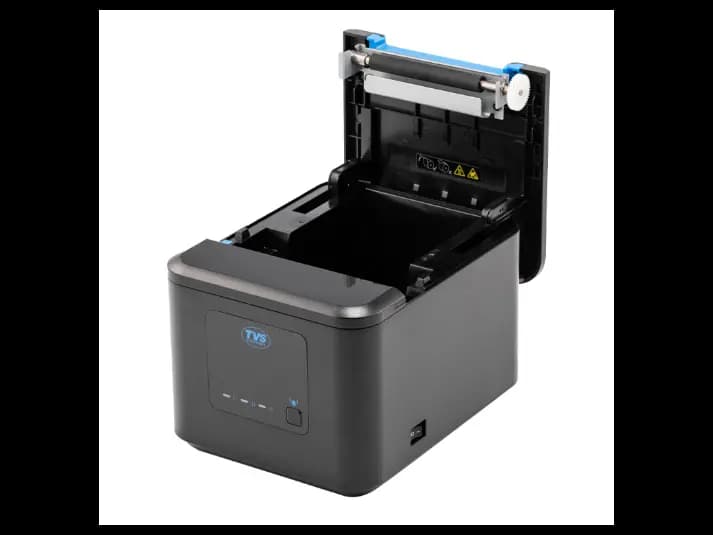

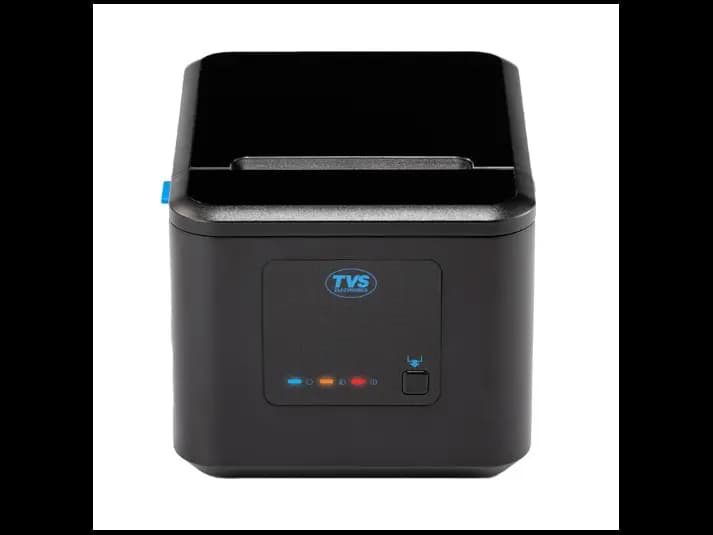

TVS RP 3230 thermal printer

RP 3230 thermal printer

RP 3230 thermal printer comes with different wired options such as USB, Serial, Ethernet and cashdrawer port which makes
it an exemplary choice for Retail and Hospitality segments. Its High-speed printing enhances swift billing and ticketing,
thus reducing long queues. Equipped with three at a glance LEDs for visualizing printer status.

Print Model
RP 3230

Printing Method
Direct thermal printing

Resolution
203 DPI (8dots/mm)

Print Width
72mm / 48mm

Print Speed
Max. 230mm/s

Emulation
ESC/POS

Page Mode
Support

Page Type
Thermal continuous paper

Paper width
79.5±0.5mm/57.5±0.5mm

Paper Container
Max. 83mm

Paper Feed
Upward feed direction

Standard
USB Type-B, Ethernet, Serial, Cash drawer

1D barcode
UPC-A, UPC-E, Code 39, Code 93, Code] 28, EAN8, EANI3, Interleaved2 of 5,Codabar

2D barcode
QR Code,PDF417

Chinese Character
Simplified/Traditional: (24 x 24 dots)

English Character
ASCII: Font A 12×24, Font B 9×17

Code Page
47

Graphics
Support bitmap printing and bitmap downloading with different density and user defined (Max. 64K for each bitmap and the total bitmap cannot exceed 512K)

Buzzer
Internal buzzer kitchen bell(optional)

Sensor (Standard)
Paper end, cover opening, cutter jam, TPH over-temperature

Sensor (Optional)
Black mark sensor

RAM
4MB

Flash
4MB

Input Power
ACI00V-240V, 50/60Hz

Output Power
DC 24V 2A

Driver
Windows 7/8/10, Windows Server 2008/2012/2016 Linux, Javapos,OPOS,MacOS

Utility Tool
Windows 7/8/10, Windows Server 2008/2012/2016

TPH Life
100 km

Cutter Life
1,500,000 times

Operating
0-45°C / 5-95%RH No condensation

Storage
20-70°C / I5-95%RH No condensation

Certification
BIS

Weight
0.916kg

Dimension
140x 179 x117(LxWxH (mm))
