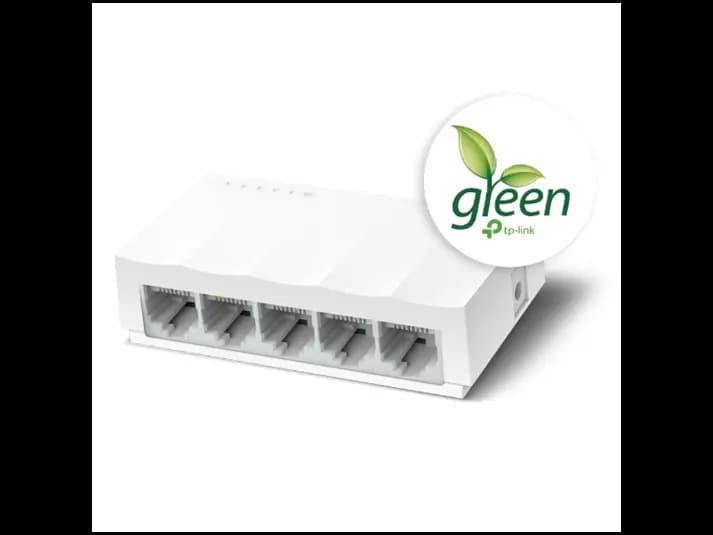

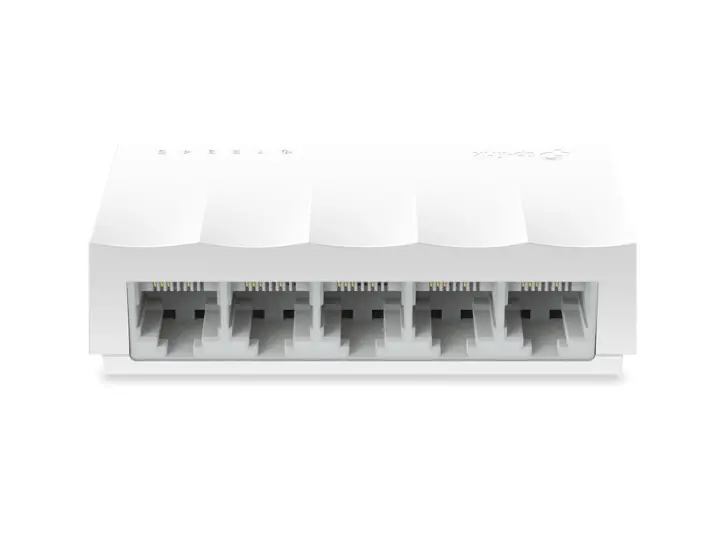

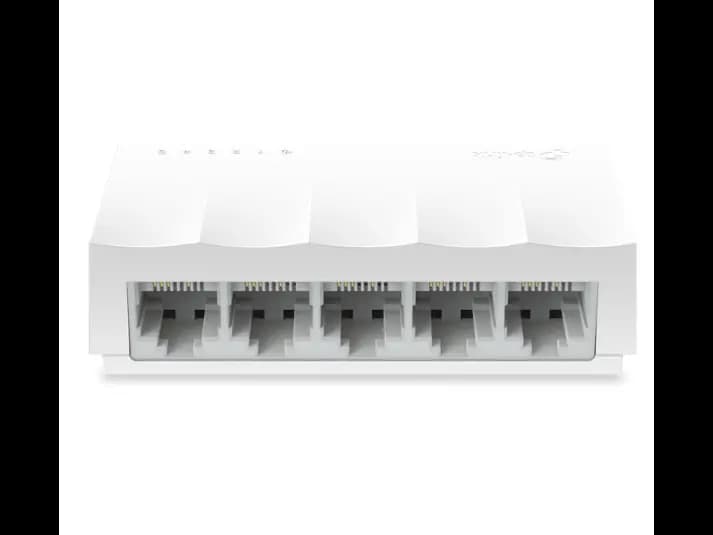

TP-LINK LS1005 5-Port 10/100Mbps Desktop Switch
TP-LINK LS1005 5-Port 10/100Mbps Desktop Switch
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power
and money. Power consumption automatically adjusts according to link status and cable length.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i/802.3u/802.3x

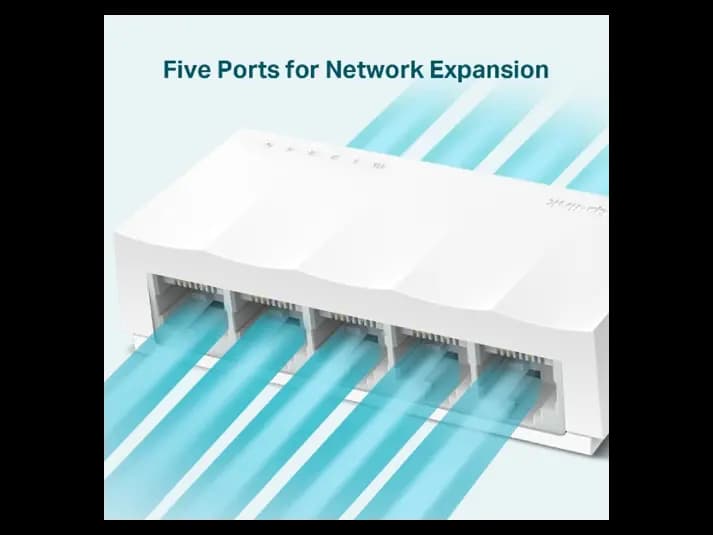

Interface
5× 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 5VDC/0.6A)

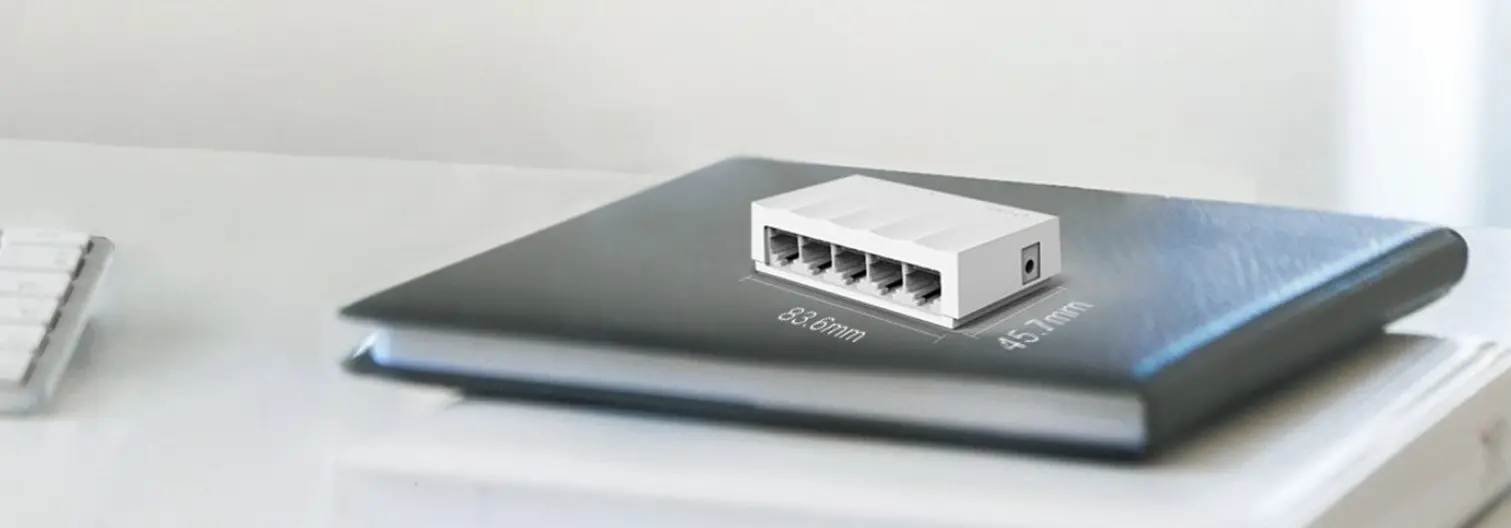

Dimensions ( W x D x H )
3.3 × 1.8 × 0.9 in. (83.6 × 45.7 × 22.8 mm)
Max. Power Consumption 1.65W
Max. Heat Dissipation 5.627 Btu/hr
SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
Back Pressure
Transmission Method
Store and Forward
OTHERS
Certification
CE, RoHS
Package Content
5-Port 10/100Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Product Specifications
- – 5× 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
- – Green Ethernet technology saves power consumption
- – IEEE 802.3X flow control provides reliable data transfer
- – Plastic casing and desktop design

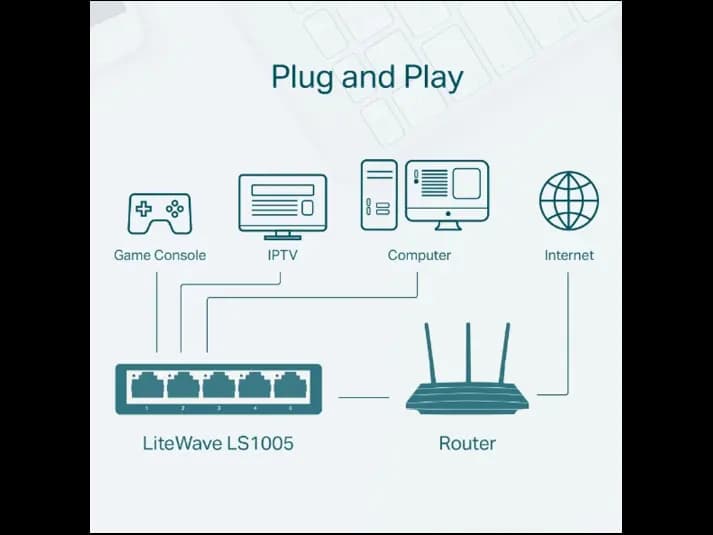

- – Plug and play, no configuration required
- – Fanless design ensures quiet operatio
