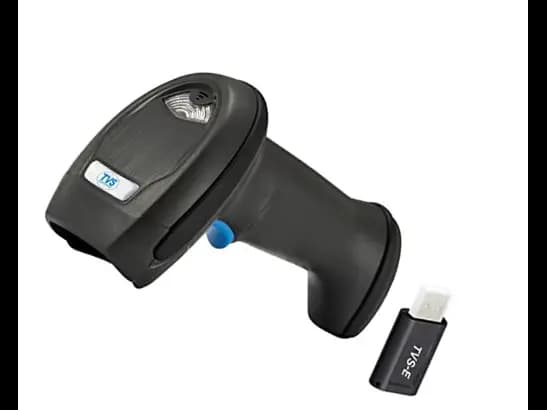

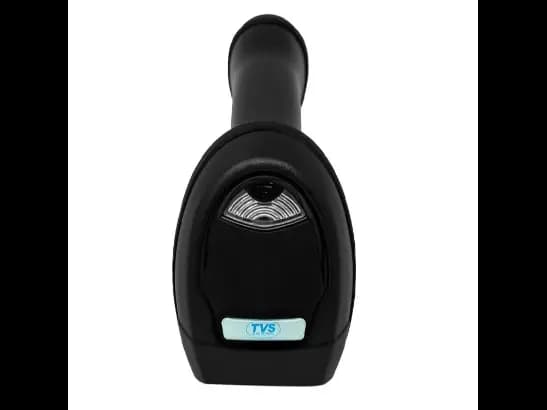

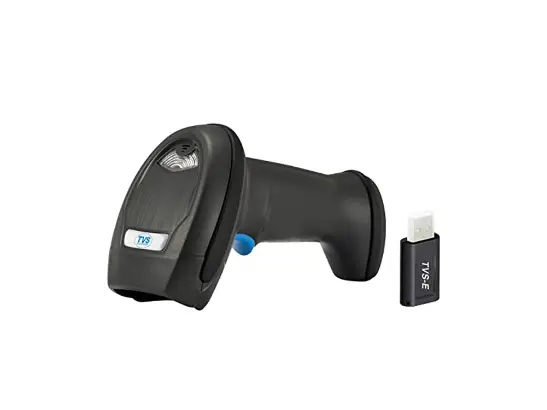

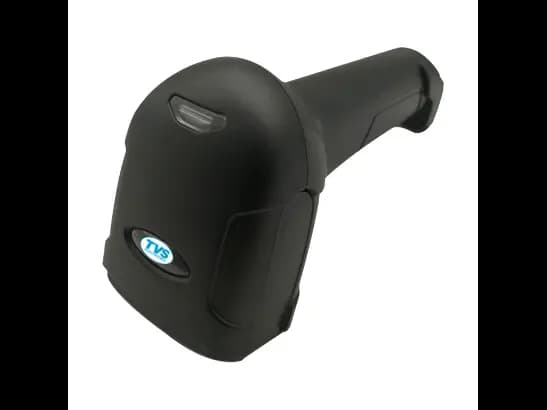

TVS BS-i201s WL 2D 1D&2D wireless barcode scanner with USB WL Dongle (Wireless), 200 S/Ps, 40M Distance





Light source
617 nm LED Aimer, White LED

Supported symbologies
1D : EAN8,EAN13,UPCA,UPCE,CODE 39,CODE 93, CODE 128,EAN 128, Codabar, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI Plessey, GS1 Databar, Industrial 25, Standard 25 etc
2D : QR code, Data Matrix, PDF 417, Aztec, Maxi code

Scan Type
Image CMOS

Scan Speed
200 scans/sec

Scan angle
Yaw 55°, Rotation 30°, Pitch 55°

Precision
=5 mil

Contrast
20 %

Error rate
Less than 1/5 million

Interface
USB HID

Dimensions
102 mm * 71 mm * 177 mm

Wireless Transmission Distance
~ 25 mts

Storage mode
Offline Storage mode: When scanner exits the connection range the data is automatically stored, Storage capacity is 512000 Characters

Inventory Storage mode : The scanner can enter the inventory storage mode, Storage capacity is 512000 Characters

Pairing mode
One to one : One One scanning gun pairs one receiver
One scanner paired with Bluetooth mobile device

Receiving end
Dedicated BT U disc receiver connecting android iOS mobile devices

Light level
can resistive the interference of lamplight and sun shiningty

weight
223 g

Operating Temperature
20°C~50°C

Storage temperature
40°C~70°C

Relative Humidity
5%~95%

Battery working time
7 hrs

Battery
Lithium battery , 2200 mA

Drop / Shock resistance
Withstands a 1.5m drop from concrete

Voltage
DC 5V ± 1%

Operating Current
When scanning code =26 mA, Not scanning: = 280 mA

Standby current
0 mA
