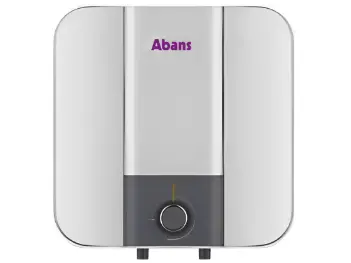

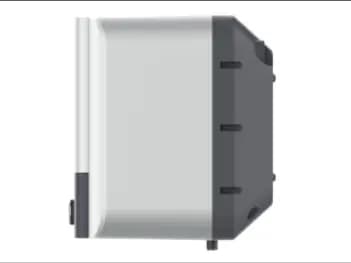

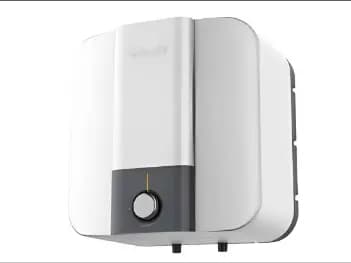

Abans Water Geyser 10L - Square Type

The Abans Water Geyser 10L Square Type offers a compact and efficient solution for your hot water needs. With a 10-liter capacity, this geyser is perfect for small to medium-sized households. Its square design allows for easy installation and fits seamlessly into tight spaces.

Key Features:

• Capacity: 10 liters, ideal for quick and convenient hot water.
• Compact Design: Square shape for easy installation in small spaces.
• Efficient Heating: Provides consistent and reliable hot water.
• User-Friendly: Simple controls for easy temperature adjustment.

Capacity	10L
Model No	ABWG-10LSQTP
Installation	Vertical Wall Mounting
Control type	Mechanical
Power Input	Single Power Input
Tank Material	SPCC
Tank Enamel type	Wet Enamel
Number of  tank welding line	1
Inlet/ Outlet Pipe Inside	Enamelled
Material of insulation layer	CFC Free Polyurethane foam
Protective anode	Magnesium Anode
Material of outer jacket	ABS
Color of finishing	White+Grey
Customer logo	Silk printed
Heating element	Incoloy 840
Rated power	2000W
Power tolerance	+5% / -10%
Rated voltage	230V~
Rated frequency	50Hz
Rated current	8.7A
Thermostat	Capillary
Temperature range	30 to 75
Thermal cut-off	Dual pins
Temperature range	93 +2 / -5
Temperature Indication	Self-changing LED lamp
Protection against humidity	IPX4
Working Pressure	0.02 ~ 0.8MPa
Plug	British Plug with ELCB
Cable length	1500mm
Product size (mm)	10L: 365*365*312
Carton size (mm)	10L: 430*420*375
MOQ	100 units
40'HQ Loading qty	900
Packaging box	General  box
In box accessories	Instruction manual, Safety valve, Mounting Bracket, Mounting bolts, Dripping pipe



Instructions to Use.

Always follow the instructions given by Abans service team, when buying / installing instant water heaters.

· To be installed the unit with a power connection through a 2-pole circuit breaker (MCB) instead of Plug top and base. The whole power circuit for the unit must allow the maximum power consumption of the water heater. Because a longer run with a current consumption more than 13A through a plug top and base (13A) will make the plug top burn.

· The MCB should be matched according to the current and voltage rating of the unit.

· Always follow the instructions for installation and electrical connections according to the product manual individually for your own safety.

· And, this is applicable, any water heater either with pump or without pump, if maximum current consumption is more than 13A
