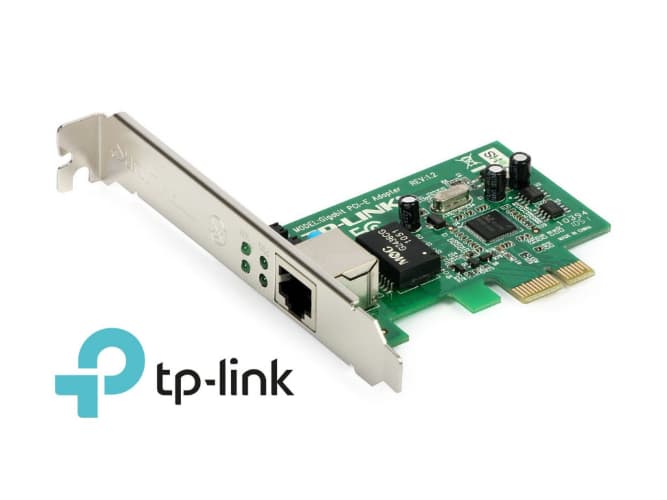

N/W Card Tp-Link G/Bt Pci Ex Tg-3468

Highlights:

10/100/1000Mbps PCIe Adapter
32-bit PCIe interface, saving the finite chassis space
Wake-on-LAN, convenient to manage over LAN

Wake-on-LAN supporting
Auto-Negotiation and Auto MDI/MDIX
Supports IEEE 802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
Supports power down/link down power saving
DOS/Win98SE/Me/2000/XP/Vista/Linux/Novell Netware

HARDWARE FEATURES:



 Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface 32-bit PCI Express
1 10/100/1000Mbps RJ45 port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
Data Rates 10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Flow Control IEEE 802.3x Flow Control (Full-Duplex)

OTHERS:

Certification CE, FCC, RoHS
Package Contents Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide
System Requirements Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
